M|R Walls Illuminated
Some of them
glow.
Integrated LED backlighting through translucent Corian. Not a light box. Not a backlit panel. The material itself glows.

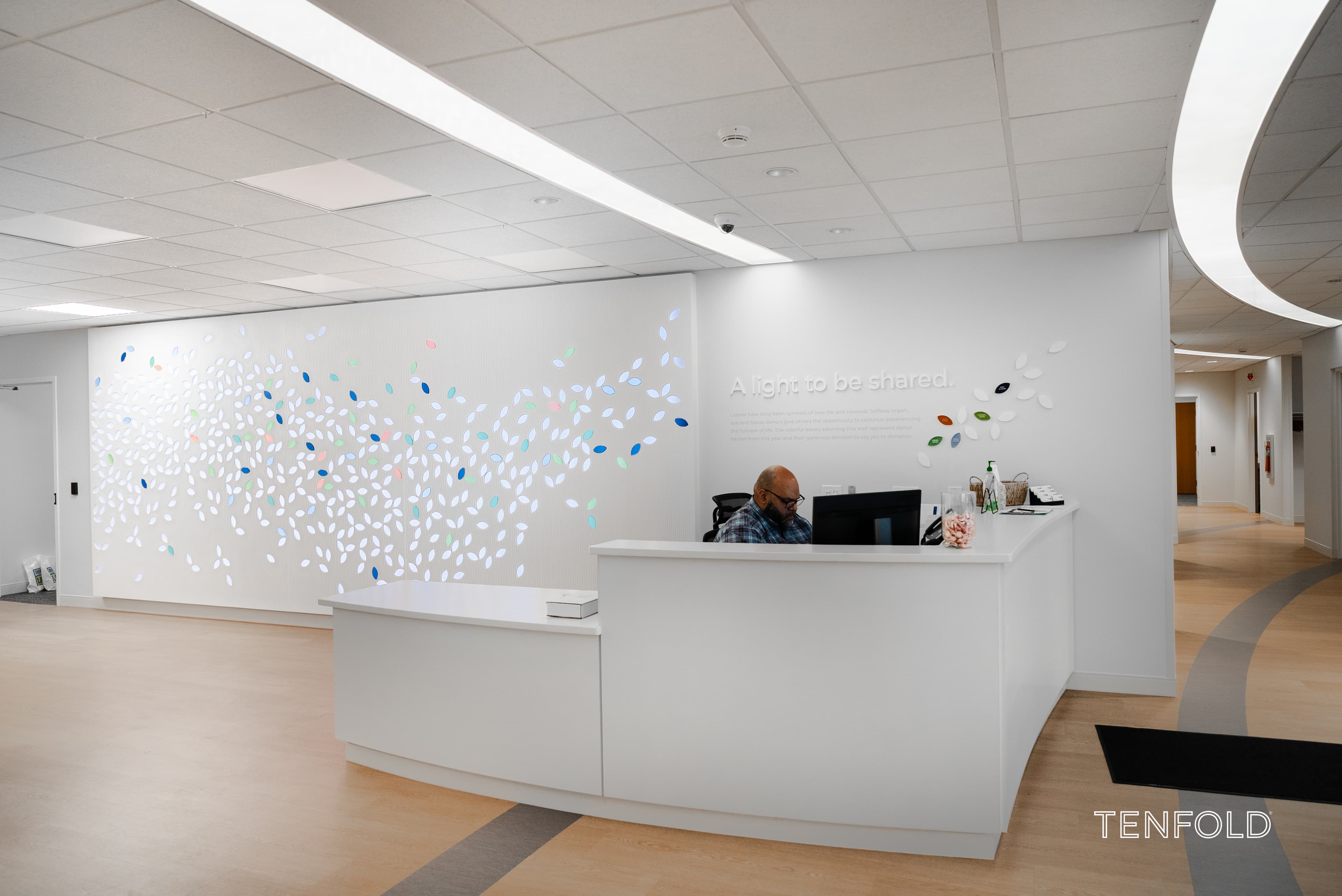

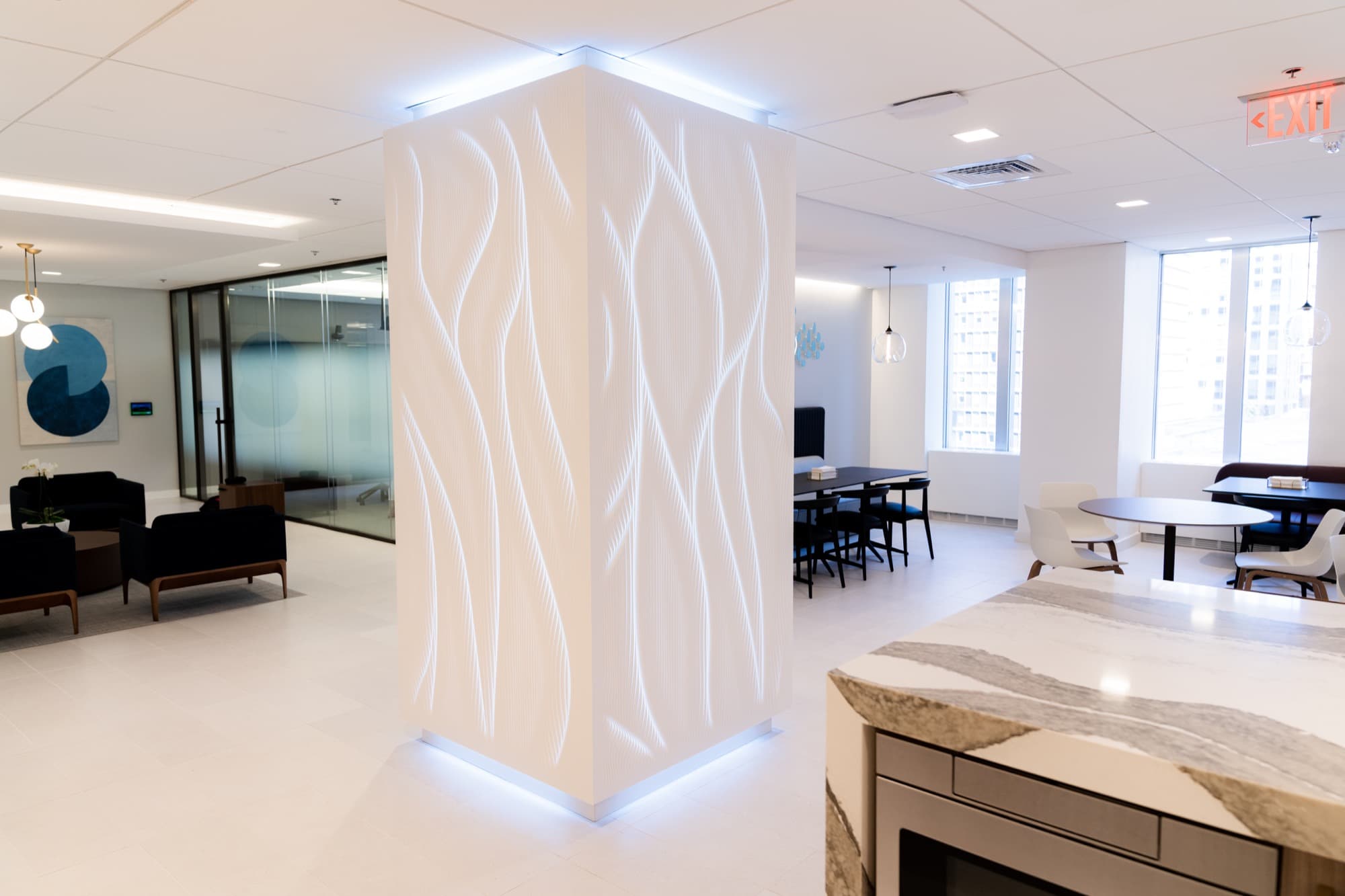

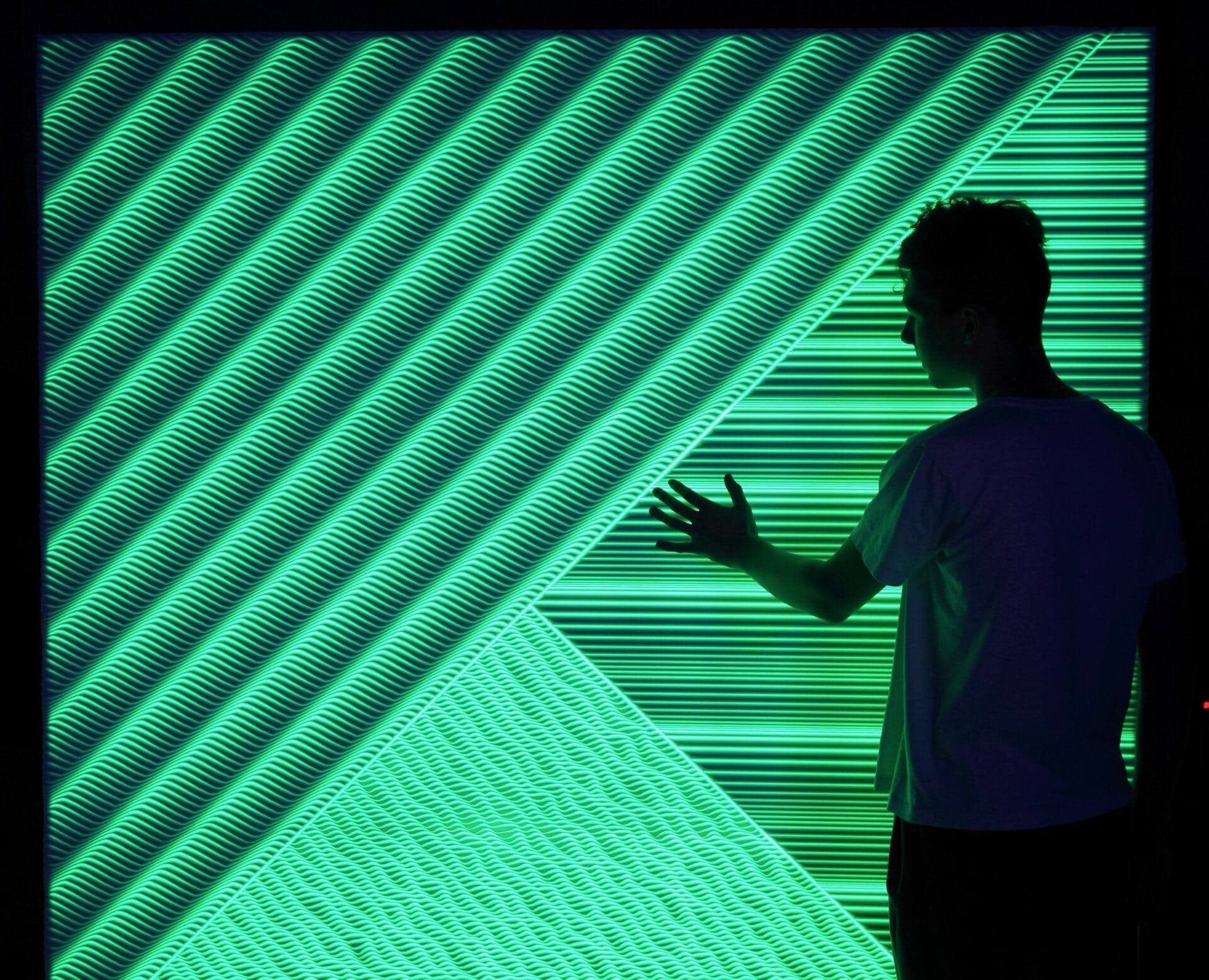

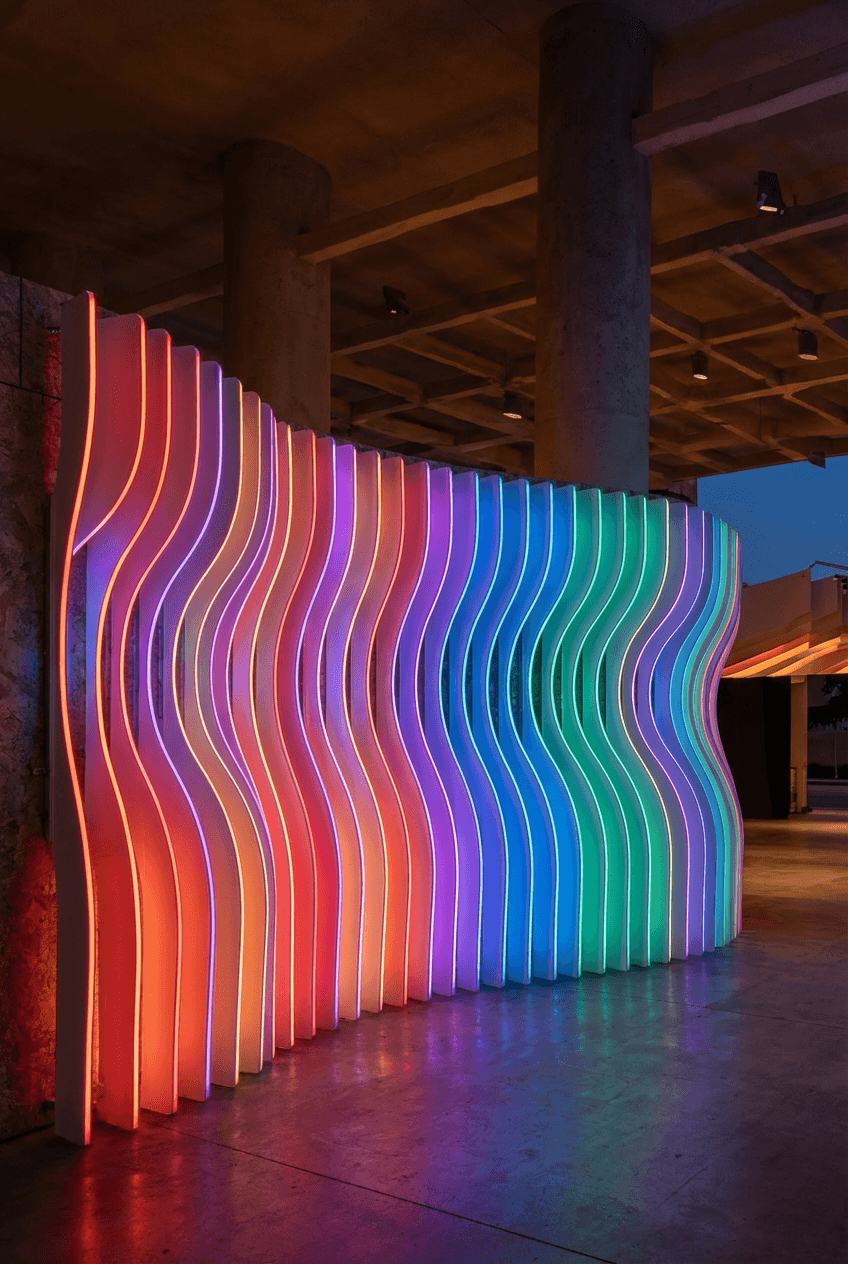

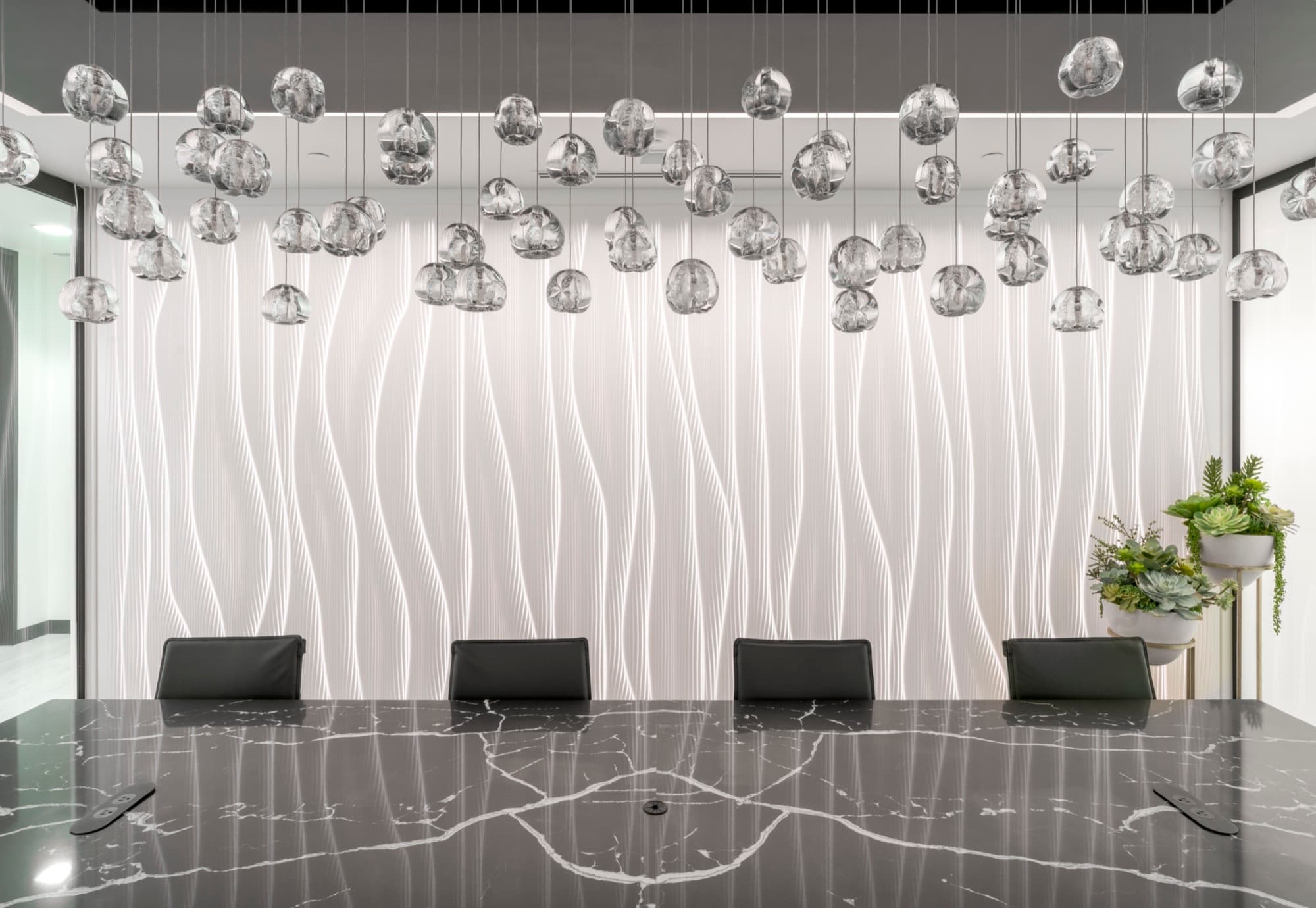

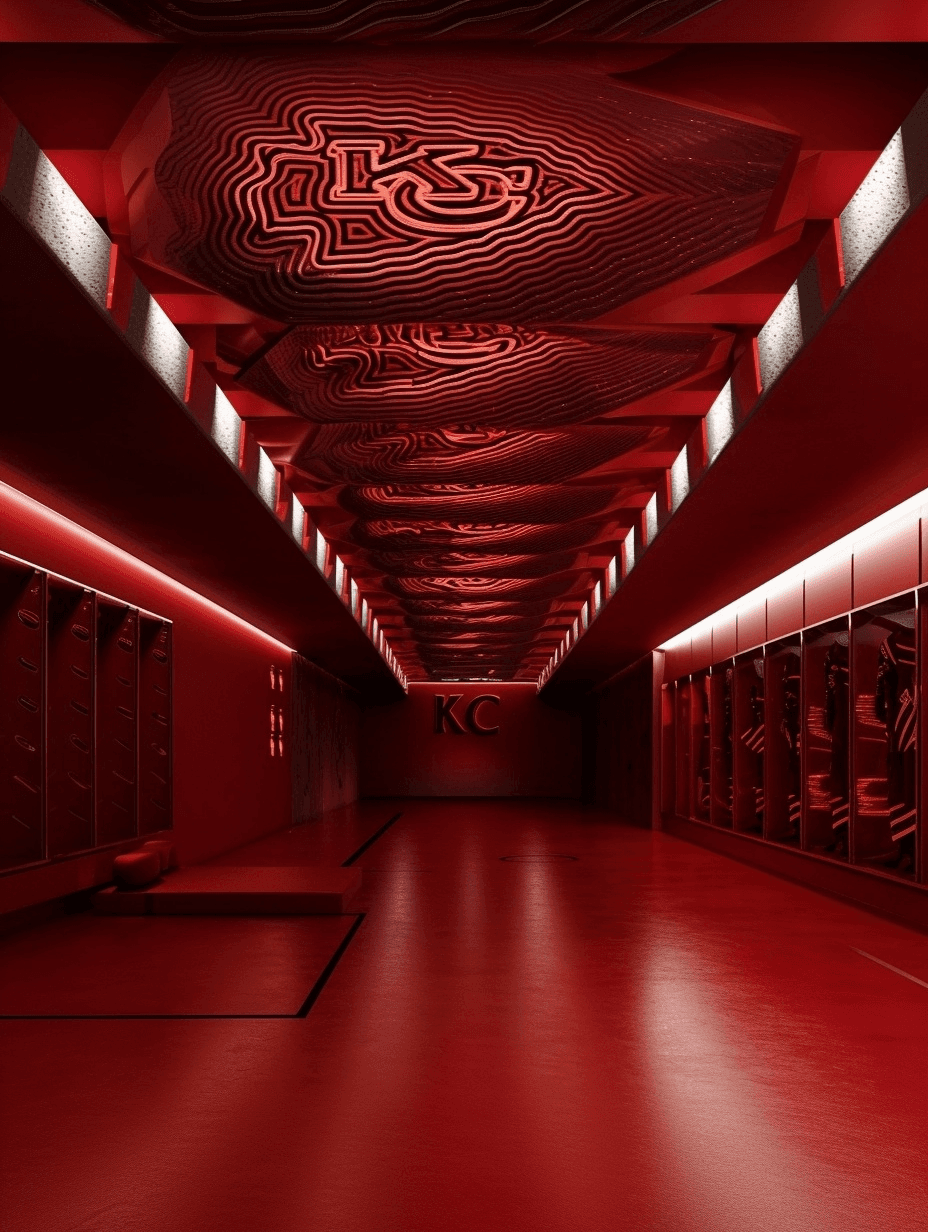

Illuminated Gallery
In the wild.
How It Works
The material glows. Not a light box.
Translucent Corian
Glacier White Corian at the right thickness transmits warm light through the material itself — not around it. The surface glows from within. This is not a light box — the material IS the diffuser.
Turnkey LED System
M|R Walls provides the complete LED system — not just the panels. LED strip lighting mounted 5" on center. RGB Standard (fixed color) or RGB Programmable with scene control and animation. Waterproof. Requires 3" wall depth. Electrical (120V circuit) by others.
✦ Turnkey LED System
M|R Walls provides the complete LED system.
Not just panels. The complete backlit assembly — LEDs, drivers, mounting hardware, and full electrical documentation. The architect specifies. The contractor connects to 120V. M|R Walls delivers everything else.
LED Type
High-CRI LED strip, 5" O.C.
Color Options
RGB Standard (fixed color) · RGB Programmable (scenes, animation, color cycling)
Color Temp
2700K warm white · 4000K cool white · Full RGB spectrum
Waterproof Rating
IP65 — suitable for wet areas including patient showers and water features
Control
Standard on/off · Programmable with DMX/0-10V dimming · Scene controller available
Who Provides
M|R Walls provides the complete LED system. Architect specifies. Contractor provides 120V circuit.
Spec Requirements
What to include in your drawings
Corian Color
Glacier White recommended — only color that fully backlights
Wall Depth
3" minimum from wall structure to panel face
Electrical
120V circuit by others — we specify, contractor provides
LED Type
RGB Standard (fixed color) or RGB Programmable (scenes, animation)
Waterproof
Yes — suitable for wet areas including patient showers, water features
Same System. Two Products.
Standard vs Illuminated — same design, different experience

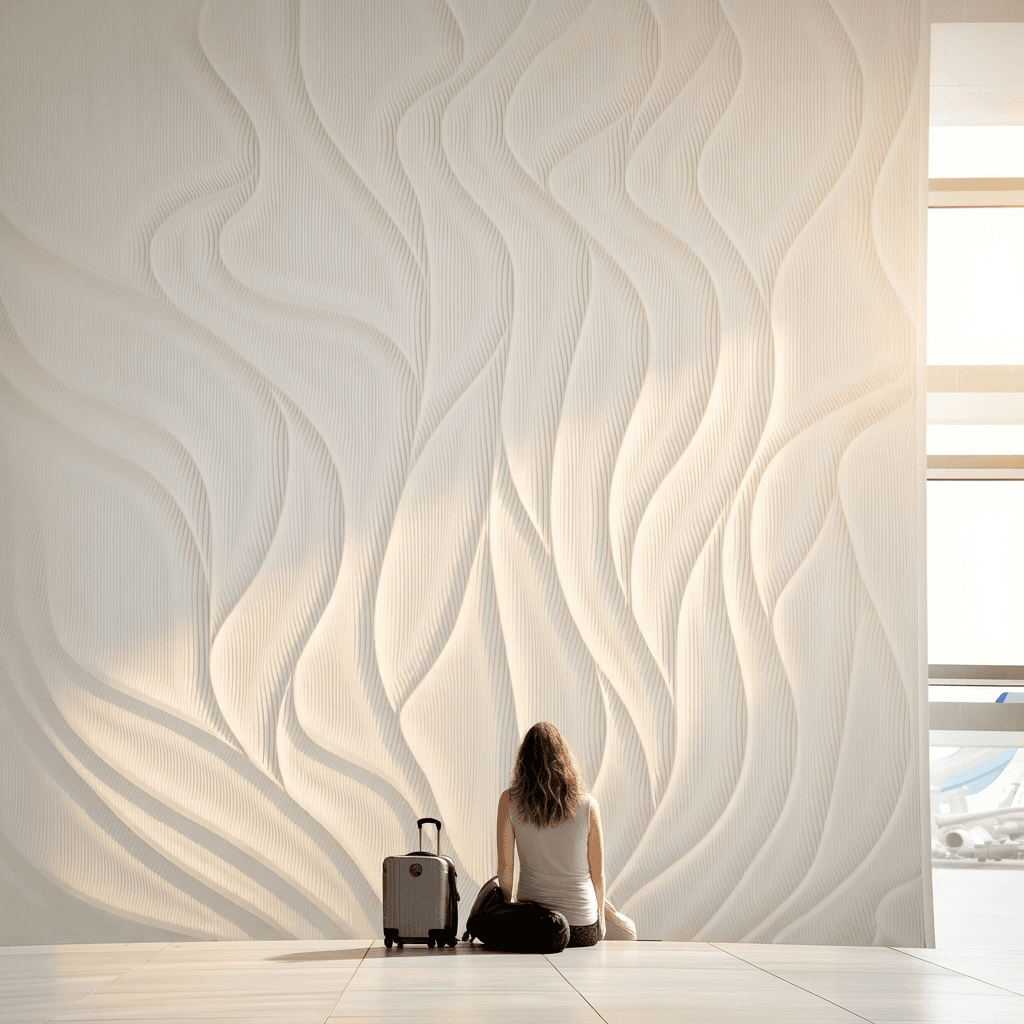

M|R Walls Standard
The sculptural surface. CNC-carved Corian in any color. Interior or exterior. The architecture speaks for itself.
M|R Walls Illuminated
The living surface. Same carving, integrated LED. Warm amber glow, programmable RGB, or cool white. Glacier White Corian recommended.
Applications
